Honda GC160 / GC190

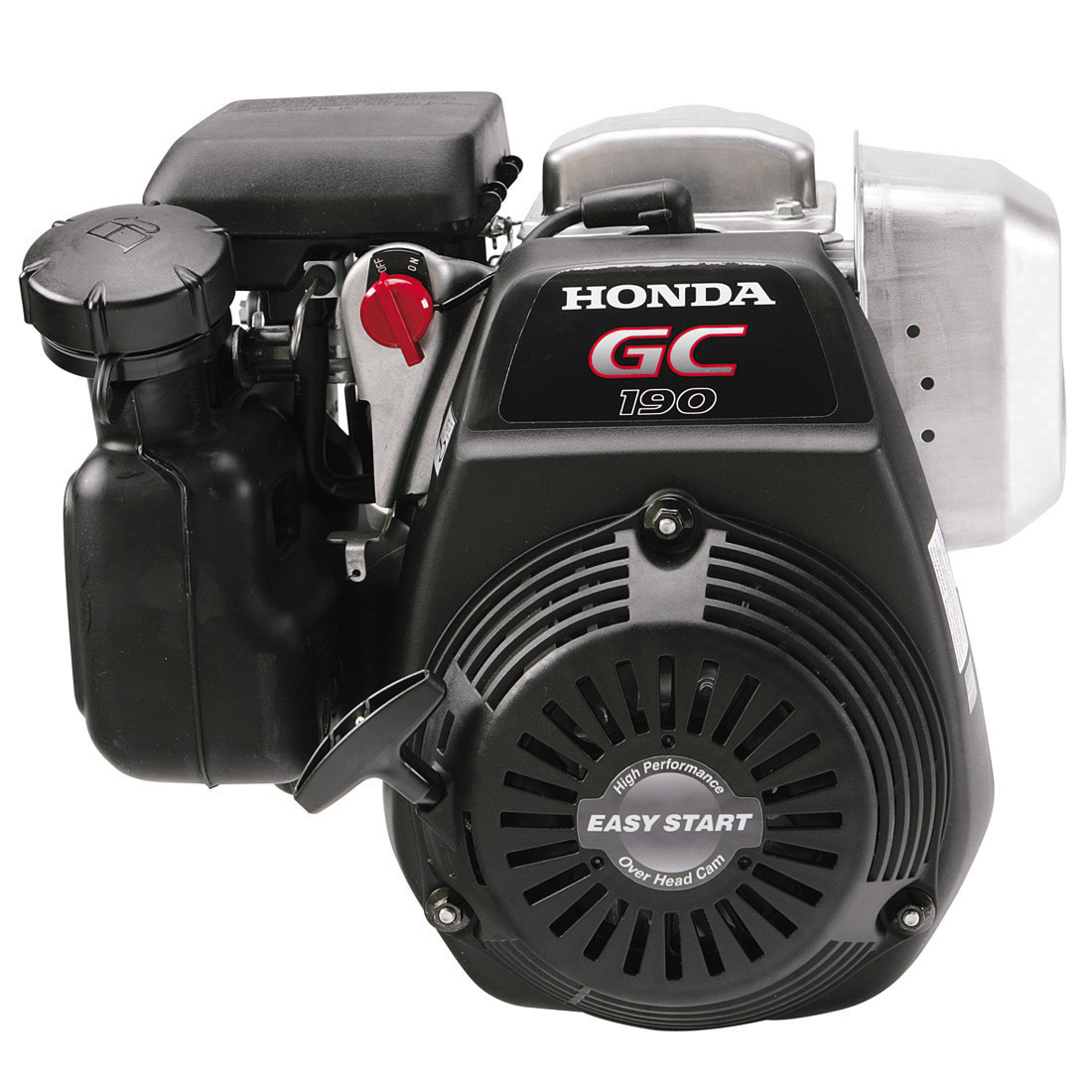

Honda GC190
Choose a base model
Horizontal-shaft OHC engines for residential equipment, including pressure washers, cultivators and pumps.
- Displacement
- 11.4 cu in (187 cm3)
- Net Power Output
- 5.2 HP (3.9 kW) @ 3600 rpm
GC190 · Specifications
Base-model specifications. A model selection does not confirm an exact ordering type, shaft dimensions or replacement fit.
- Engine Type
- Air-cooled 4-stroke OHC
- Bore x Stroke
- 2.7" x 2.0" (69 mm x 50 mm)
- Displacement
- 11.4 cu in (187 cm3)
- Net Power Output
- 5.2 HP (3.9 kW) @ 3600 rpm
- Net Torque
- 8.3 lb-ft (11.2 Nm) @ 2500 rpm
- PTO Shaft Rotation
- Counterclockwise (from PTO shaft side)
- Compression Ratio
- 8.5:1
- Carburetor
- Horizontal type butterfly valve
- Ignition System
- Transistorized magneto
- Starting System
- Recoil
- Air Cleaner
- Dry (paper filter)
- Governor System
- Centrifugal Mechanical
- Fuel Tank Capacity
- 1.9 U.S. qts (1.8 liters)
- Fuel
- Unleaded 86 octane or higher
- Oil Capacity
- 0.61 US qt (0.58l)
- Lubrication System
- Splash
- Dry Weight
- 29.1 lbs (13.2 kg)
Dimensions
- Length (min)
- 13.6" (345mm)
- Width (min)
- 14.5" (369mm)
- Height (min)
- 13.0" (331mm)
Overall dimensions are not crankshaft dimensions. Check the complete type and installation requirements.
Features
- Belt-driven overhead cam
- Integrated cylinder and crankcase construction
- Automatic starting decompression
- Accessible spark plug and oil service points
- Single-element air filtration
Applications
- Pressure washers
- Tillers / cultivators
- Agricultural equipment
- Water pumps
Configuration choices
Honda lists different control arrangements for different applications. Confirm the exact engine type before selecting a replacement.
