Honda GCV160 / GCV190

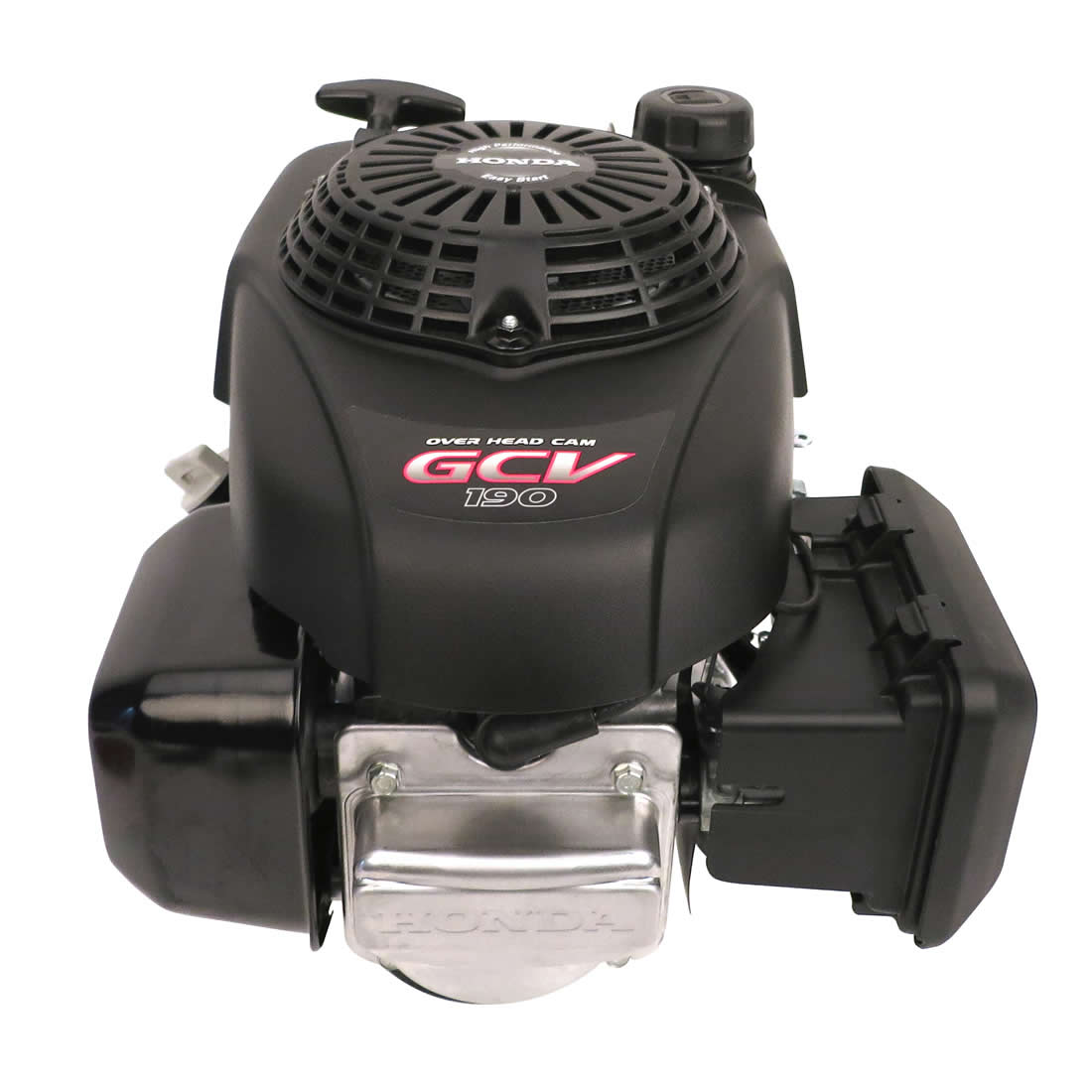

Honda GCV190
Choose a base model
Vertical-shaft OHC engines for mowers, pressure washers and other working equipment. Compare each base model before confirming the full engine type.
- Displacement
- 11.4 cu in (187 cm3)
- Net Power Output
- 5.1HP (3.8 kW) @ 3600 rpm
GCV190 · Specifications
Base-model specifications. A model selection does not confirm an exact ordering type, shaft dimensions or replacement fit.
- Engine Type
- Air-cooled 4-stroke OHC
- Bore x Stroke
- 2.7" x 2.0" (69 mm x 50 mm)
- Displacement
- 11.4 cu in (187 cm3)
- Net Power Output
- 5.1HP (3.8 kW) @ 3600 rpm
- Net Torque
- 8.3 lb-ft (11.3 Nm) @ 2500 rpm
- PTO Shaft Rotation
- Counterclockwise (from PTO shaft side)
- Compression Ratio
- 8.5:1
- Carburetor
- Horizontal type butterfly valve
- Ignition System
- Transistorized magneto
- Starting System
- Recoil/electric
- Air Cleaner
- Dry (paper filter)
- Governor System
- Centrifugal Mechanical
- Fuel Tank Capacity
- 0.98 U.S. qts (.93 liter)
- Fuel
- Unleaded 86 octane or higher
- Oil Capacity
- 0.58 US qt (0.55l)
- Lubrication System
- Splash
- Dry Weight
- 27.3 lbs (12.4 kg)
Dimensions
- Length (min)
- 14.4" (367mm)
- Width (min)
- 13.0" (331mm)
- Height (min)
- 13.8" (349mm)
Overall dimensions are not crankshaft dimensions. Check the complete type and installation requirements.
Features
- Belt-driven overhead cam
- Integrated cylinder and crankcase construction
- Automatic starting decompression
- Single-element air filtration
Applications
- Pressure washers
- Lawn mowers
- Agricultural equipment
- Forestry equipment
Configuration choices
Automatic choke, automatic throttle, blade-brake clutch and control choices depend on the engine configuration; these are not included with every model.
