Honda GX120 / GX160 / GX200

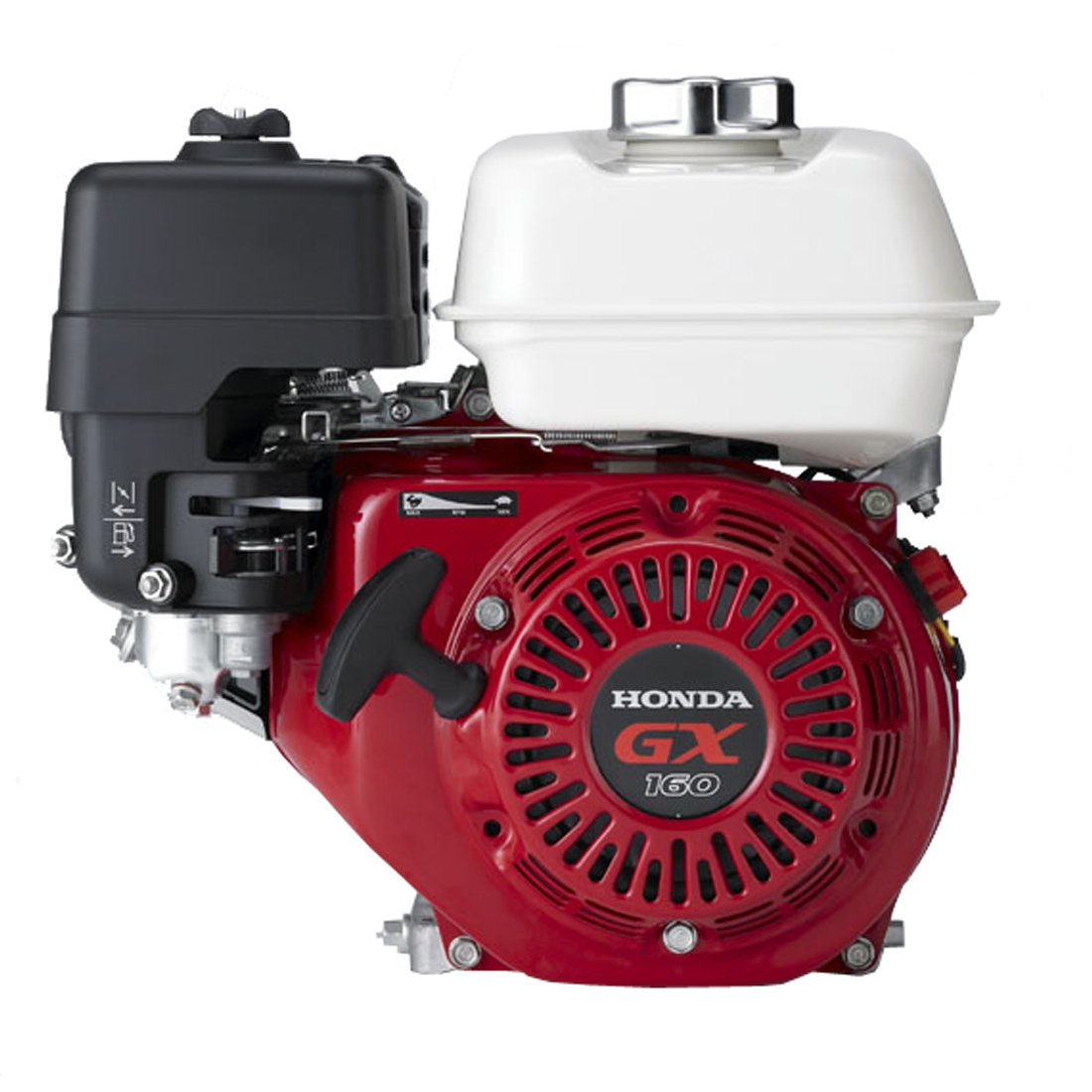

Honda GX160
Choose a base model
Horizontal-shaft OHV power for commercial equipment. Compare the base models here, then confirm the complete engine type for your machine.
- Displacement
- 163 cm3
- Net Power Output
- 4.8 hp (3.6 kW) @ 3,600 rpm
GX160 · Specifications
Base-model specifications. A model selection does not confirm an exact ordering type, shaft dimensions or replacement fit.
- Engine Type
- Air-cooled 4-stroke OHV
- Bore x Stroke
- 68 X 45 mm
- Displacement
- 163 cm3
- Net Power Output
- 4.8 hp (3.6 kW) @ 3,600 rpm
- Net Torque
- 7.6 lb-ft (10.3 Nm) @ 2,500 rpm
- PTO Shaft Rotation
- Counterclockwise (from PTO shaft side)
- Compression Ratio
- 9.0 : 1
- Lamp/Charge coil options
- 50W / 1A, 7A, 18A
- Carburetor
- Butterfly
- Ignition System
- Transistorized magneto
- Starting System
- Recoil Starter
- Lubrication System
- Splash
- Governor System
- Centrifugal Mechanical
- Air Cleaner
- Dual Element
- Oil Capacity
- 0.61 US qt. (0.58 L)
- Fuel Tank Capacity
- 3.3 U.S. qts (3.1 liters)
- Fuel
- Unleaded 86 octane or higher
- Dry Weight
- 33 lbs. (15.1 kg)
Minimum engine dimensions
- Length (min)
- 12.2" (312 mm)
- Width (min)
- 14.3" (362 mm)
- Height (min)
- 13.6" (346 mm)
Overall engine dimensions are not crankshaft dimensions. Check the complete engine type and installation requirements.
Engine features
- OHV four-stroke design
- Cast-iron cylinder sleeve
- Dual-element air cleaner
- Automatic decompression for recoil starting
- Ball-bearing-supported crankshaft
- Fuel shutoff valve
- Balanced crankshaft and reduced piston weight to limit vibration
Applications
Commercial lawn and garden equipment, tillers, generators, construction and industrial equipment, agricultural equipment, water pumps, pressure washers and forestry equipment.
Configuration choices
Honda lists gear-reduction and shaft choices, along with select-model options such as electric start and cyclone air cleaning. These are configuration choices, not equipment included with every GX120, GX160 or GX200. Contact the shop with the complete engine type.
