Kawasaki Engines · Garland, Texas
Find engine and parts support for your equipment. Garland Saw helps you identify the right specification, plan maintenance and review repair or replacement options.
V-twin power designed for residential lawn care and yard maintenance.
Used for: Residential zero-turn riders; lawn and garden tractors.
Engines are for in-store pickup only. Match the complete specification to your equipment.
The product brochure presents four FR models. FR541V is documented separately in the retail engine catalog; its photo represents the FR Series.
603 cc (36.8 cu. in.)
Choose specification & pickup price →
726 cc (44.3 cu. in.)
Choose specification & pickup price →
726 cc (44.3 cu. in.)
Choose specification & pickup price →
726 cc (44.3 cu. in.)
Choose specification & pickup price →
603 cc
Choose specification & pickup price →Base-model catalog data; individual specifications and availability require confirmation. FJ versions are compared by displacement, without assigning a horsepower rating.
| Model | Displacement | Maximum power | Maximum torque | Oil capacity | Dry weight |
|---|---|---|---|---|---|
| FR600V | 603 cc (36.8 cu. in.) | 18.0 hp (13.4 kW) / 3600 rpm | 32.3 ft-lbs (43.7 N·m) / 2200 rpm | 1.8 quart (1.7 liter) w/oil filter chan | 80.9 lbs (36.7 kg) |
| FR651V | 726 cc (44.3 cu. in.) | 21.5 hp (16.0 kW) / 3600 rpm | 39.3 ft-lbs (53.2 N·m) / 2200 rpm | 2.2 quart (2.1 liter) w/oil filter chan | 88.2 lbs (40.0 kg) |
| FR691V | 726 cc (44.3 cu. in.) | 23.0 hp (17.2 kW) / 3600 rpm | 39.3 ft-lbs (53.2 N·m) / 2200 rpm | 2.2 quart (2.1 liter) w/oil filter chan | 88.2 lbs (40.0 kg) |
| FR730V | 726 cc (44.3 cu. in.) | 24.0 hp (17.9 kW) / 3600 rpm | 39.8 ft-lbs (53.9 N·m) / 2400 rpm | 2.2 quart (2.1 liter) w/oil filter chan | 88.2 lbs (40.0 kg) |
| FR541V | 603 cc | 15.0 hp | — | — | — |

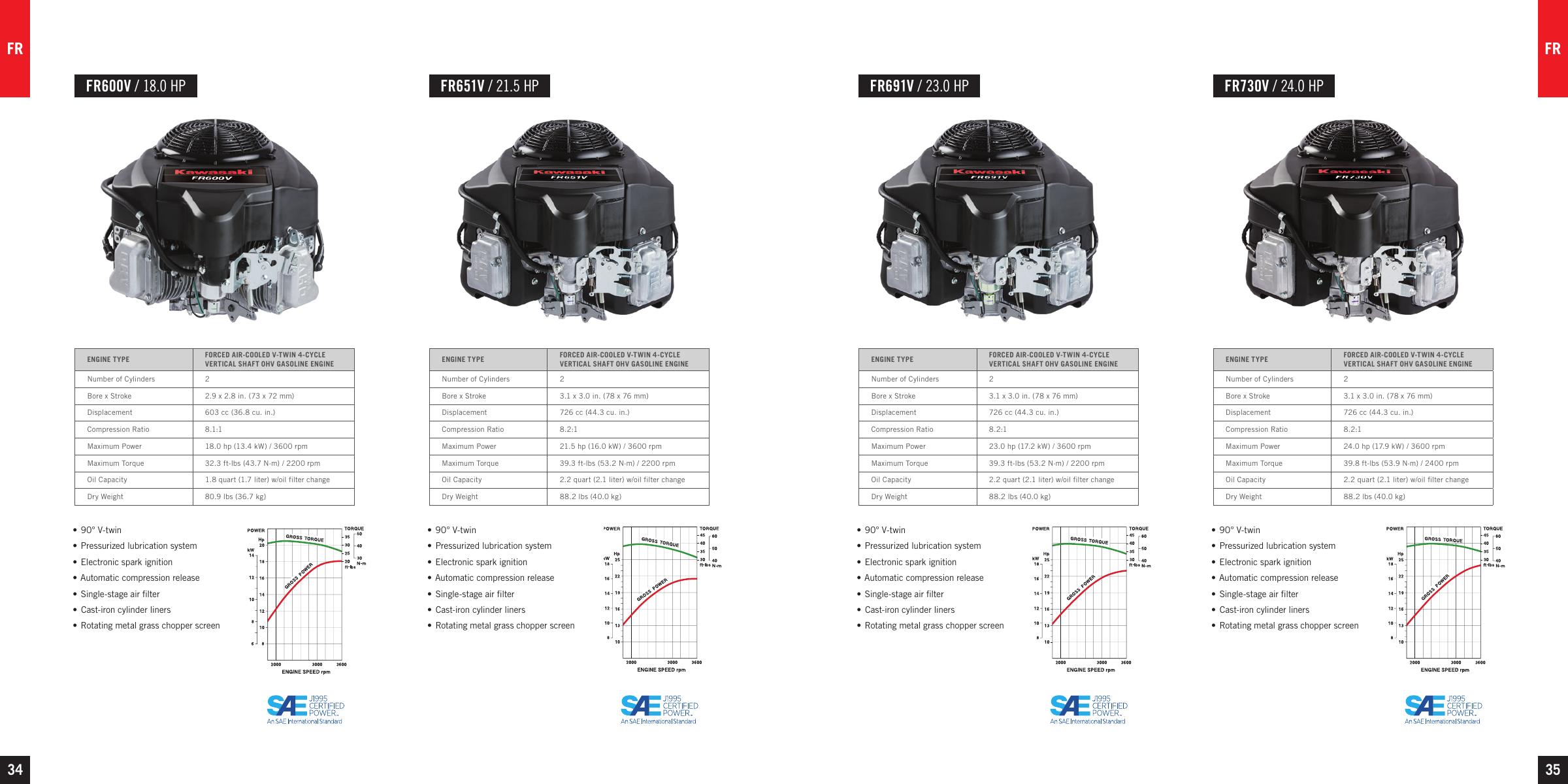

Original manufacturer catalog spread. Open the image to enlarge it.
