Kohler / Rehlko · Garland, Texas

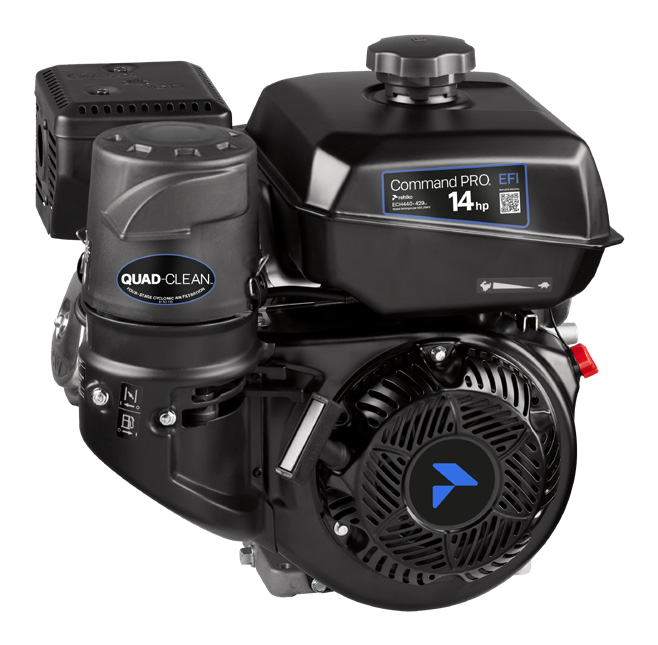

ECH440
Base-model engine information. Use the complete engine-label specification to confirm the configuration for your equipment.
- Shaft orientation
- Horizontal
- Gross power
- 14 (10.5) hp (kW) @ 3600 rpm
- Displacement
- 429 (26.2) cc (cu in)
Base-model specifications
These specifications describe the base engine, not an exact ordering configuration or a guaranteed replacement fit.
- Shaft orientation
- Horizontal
- Fuel
- Gasoline
- Cylinder configuration
- Single cylinder
- Cooling
- Air-cooled
- Gross power
- 14 (10.5) hp (kW) @ 3600 rpm
- Displacement
- 429 (26.2) cc (cu in)
- Bore
- 3.5 (89) in (mm)
- Stroke
- 2.7 (69) in (mm)
- Peak torque
- 22.7 (30.8) ft-lb (Nm) @ 2800 rpm
- Compression ratio
- 8.3:1
- Dry weight
- 72.8 (33) lb (kg)
- Oil capacity
- 1.16 (1.1) U.S. qt (L)
- Fuel capacity
- 7.4 (7) U.S. qt (L)
- Lubrication
- Splash
- Dimensions (L × W × H)
- 12.7 × 17.8 × 18.4 (324 × 452 × 467) in (mm)Length is recoil starter to PTO mounting surface. Height is with USA 50-state evaporative fuel cap.
Engine features
- Four-cycle
- OHV
- Cast-iron cylinder liner
- Aluminum head and crankcase
- Closed-loop EFI
- Quad-Clean four-stage cyclonic air cleaner
- Dual ball bearings
- Large metal fuel tank
