Kohler / Rehlko · Garland, Texas

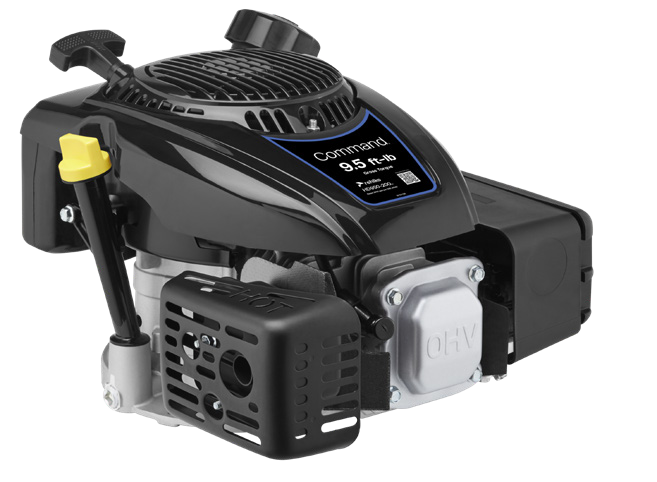

HD950
Base-model engine information. Use the complete engine-label specification to confirm the configuration for your equipment.
- Shaft orientation
- Vertical
- Displacement
- 200 (12.2) cc (cu in)
Base-model specifications
These specifications describe the base engine, not an exact ordering configuration or a guaranteed replacement fit.
- Shaft orientation
- Vertical
- Fuel
- Gasoline
- Cylinder configuration
- Single cylinder
- Cooling
- Air-cooled
- Gross torque
- 9.50 (12.9) ft-lb (Nm) @ 2800 rpm
- Displacement
- 200 (12.2) cc (cu in)
- Bore
- 2.9 (73) in (mm)
- Stroke
- 1.9 (48) in (mm)
- Compression ratio
- 8.9:1
- Dry weight
- 33.5 (15.2) lb (kg)
- Oil capacity
- 0.63 (0.6) U.S. qt (L)
- Dimensions (L × W × H)
- 15.6 × 14.1 × 11.1 (396 × 360 × 283) in (mm)Length is front of air cleaner cover to back of blower housing. Width is side to side. Height is mounting surface to grass screen.
Engine features
- Four-cycle
- OHV
- Cast-iron cylinder liners
- Aluminum block
- Cast-iron cylinder liners
- Accu-Fill fuel tank
- Consistent-Cut technology
- Smart-Choke starting system
- Easy-pull starting with no priming required
- Large two-chamber muffler
