Kohler / Rehlko · Garland, Texas

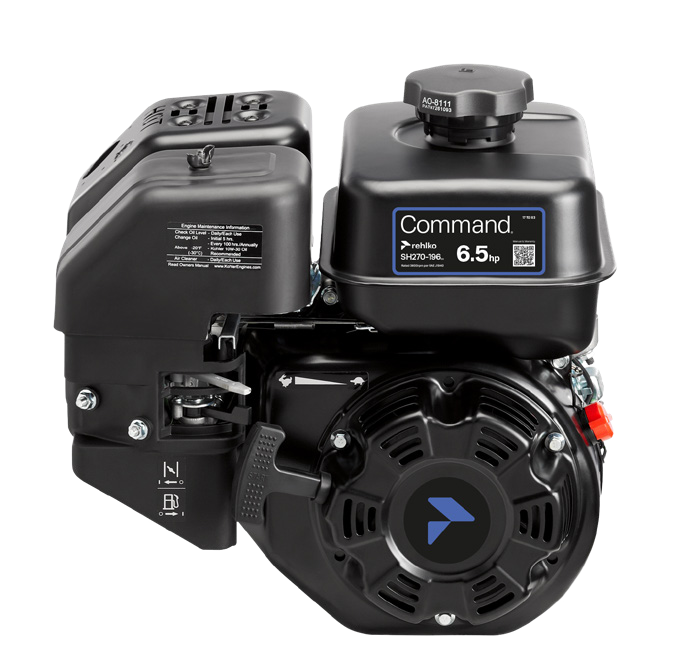

SH270
Base-model engine information. Use the complete engine-label specification to confirm the configuration for your equipment.
- Shaft orientation
- Horizontal
- Gross power
- 6.5 (4.8) hp (kW) @ 3600 rpm
- Displacement
- 196 (12) cc (cu in)
Base-model specifications
These specifications describe the base engine, not an exact ordering configuration or a guaranteed replacement fit.
- Shaft orientation
- Horizontal
- Fuel
- Gasoline
- Cylinder configuration
- Single cylinder
- Cooling
- Air-cooled
- Gross power
- 6.5 (4.8) hp (kW) @ 3600 rpm
- Displacement
- 196 (12) cc (cu in)
- Bore
- 2.7 (68) in (mm)
- Stroke
- 2.1 (54) in (mm)
- Peak torque
- 10.2 (13.8) ft-lb (Nm) @ 3000 rpm
- Compression ratio
- 8.5:1
- Dry weight
- 35.3 (16) lb (kg)
- Oil capacity
- 0.6 (0.6) U.S. qt (L)
- Fuel capacity
- 3.4 (3.3) U.S. qt (L)
- Lubrication
- Splash
- Dimensions (L × W × H)
- 9.9 × 14.5 × 14.6 (253 × 369 × 371) in (mm)Length is recoil starter to PTO mounting surface. Height is with USA 50-state evaporative fuel cap.
Engine features
- Four-cycle
- OHV
- Cast-iron cylinder liner
- Aluminum block
- Large metal fuel tank
- Oil Sentry automatic low-oil shutdown
