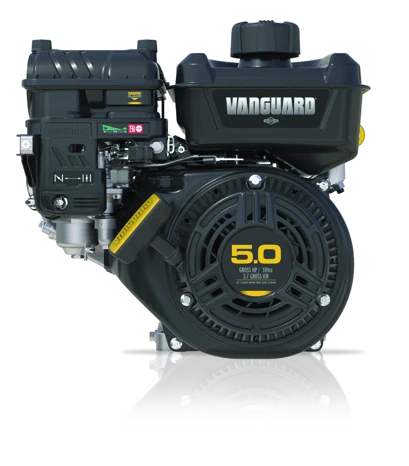

Vanguard 160 (10V3)
Base-model engine information. Use the complete engine-label specification to confirm the configuration for your equipment.
- Shaft orientation
- Horizontal
- Gross power
- 5.0 gross hp
- Displacement
- 169 cc
Base-model specifications
These specifications describe the base engine, not an exact ordering configuration or a guaranteed replacement fit.
- Shaft orientation
- Horizontal
- Cylinder configuration
- single-cylinder
- Cooling
- Air-cooled
- Model number
- 10V3
- Gross power
- 5.0 gross hp
- Displacement
- 169 cc
- Cylinder construction
- Cast iron sleeve
- Bore
- 2.44 in
- Stroke
- 2.2 in
- Fuel tank capacity
- 3.1 L
- Oil capacity
- 20 oz
- Catalog weight
- 39.5 lb
- Dimensions (L × W × H)
- 10.78 x 14.42 x 14.22 in
Engine features
- TransportGuard fuel and ignition shutoff
- Optimized starting
- Cyclonic air filtration
Configuration details
These options depend on the complete engine specification. Confirm the configuration and equipment application with the shop.
- Electric start
- Low-oil sensor
- 45-degree inclination package
- Clear-flange muffler
- 2:1 or 6:1 gear-reduction package
