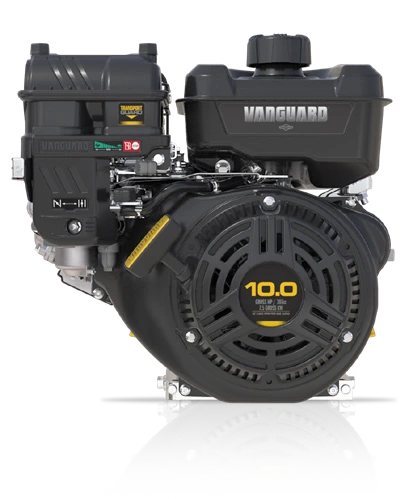

Vanguard 300 (19V3)
Base-model engine information. Use the complete engine-label specification to confirm the configuration for your equipment.
- Shaft orientation
- Horizontal
- Gross power
- 10.0 gross hp
- Displacement
- 307 cc
Base-model specifications
These specifications describe the base engine, not an exact ordering configuration or a guaranteed replacement fit.
- Shaft orientation
- Horizontal
- Cylinder configuration
- single-cylinder
- Cooling
- Air-cooled
- Model number
- 19V3
- Gross power
- 10.0 gross hp
- Displacement
- 307 cc
- Cylinder construction
- Cast iron sleeve
- Bore
- 3.15 in
- Stroke
- 2.40 in
- Fuel tank capacity
- 4.8 L
- Oil capacity
- 30 oz
- Catalog weight
- 71 lb
- Dimensions (L × W × H)
- 13.0 x 17.3 x 17.6 in
Engine features
- TransportGuard fuel and ignition shutoff
- Optimized starting
- Cyclonic air filtration
Configuration details
These options depend on the complete engine specification. Confirm the configuration and equipment application with the shop.
- Electric start
- Low-oil sensor
- 45-degree inclination package
- Clear-flange muffler
