Vanguard · Garland, Texas

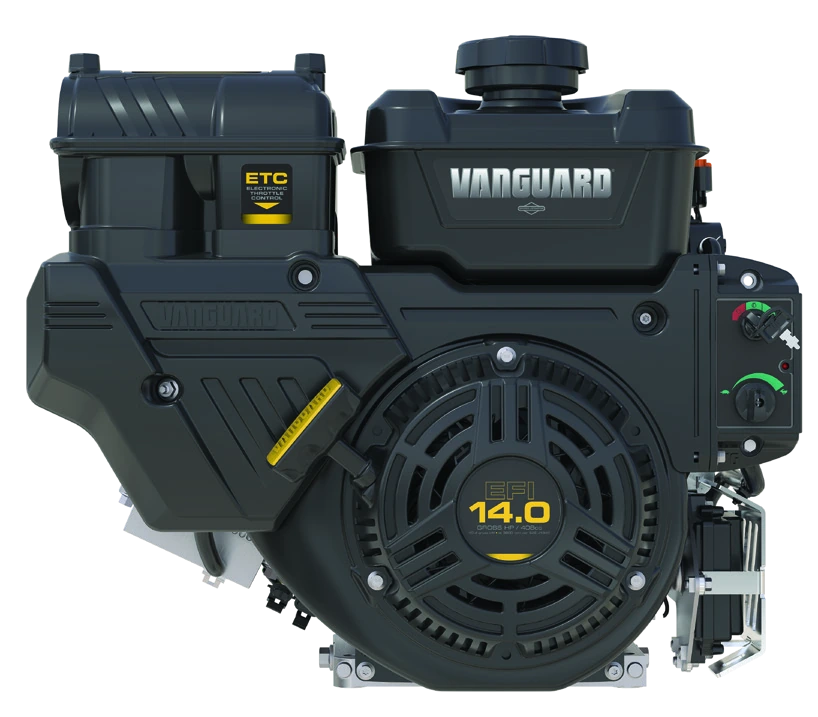

Vanguard 400 EFI/ETC (25E3)
Base-model engine information. Use the complete engine-label specification to confirm the configuration for your equipment.
- Shaft orientation
- Horizontal
- Gross power
- 14.0 gross hp
- Displacement
- 408 cc
Base-model specifications
These specifications describe the base engine, not an exact ordering configuration or a guaranteed replacement fit.
- Shaft orientation
- Horizontal
- Cylinder configuration
- single-cylinder
- Cooling
- Air-cooled
- Model number
- 25E3
- Gross power
- 14.0 gross hp
- Displacement
- 408 cc
- Cylinder construction
- Cast iron sleeve
- Bore
- 3.46 in
- Stroke
- 2.64 in
- Fuel tank capacity
- 5.99 L
- Oil capacity
- 32 oz
- Catalog weight
- 87 lb
- Dimensions (L × W × H)
- 21.3 x 14.3 x 18.6 in
Engine features
- Vanguard EFI/ETC
- Automotive-style starting
- Cyclonic air filtration
Configuration details
These options depend on the complete engine specification. Confirm the configuration and equipment application with the shop.
- Low-oil sensor
- 45-degree inclination package
- Clear-flange muffler
- Low-mount or remote air cleaner
- Remote-mount control panel
