Vanguard · Garland, Texas

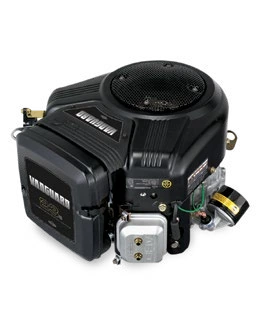

Vanguard 23.0 Gross HP (3867)
Base-model engine information. Use the complete engine-label specification to confirm the configuration for your equipment.
- Shaft orientation
- Vertical
- Gross power
- 23.0 gross hp
- Displacement
- 627 cc
Base-model specifications
These specifications describe the base engine, not an exact ordering configuration or a guaranteed replacement fit.
- Shaft orientation
- Vertical
- Cylinder configuration
- V-twin
- Cooling
- Air-cooled
- Model number
- 3867
- Gross power
- 23.0 gross hp
- Displacement
- 627 cc
- Cylinder construction
- Cast iron sleeve
- Bore
- 2.97 in
- Stroke
- 2.76 in
- Oil capacity
- 48 oz
- Catalog weight
- 83.7 lb
Engine features
- Low-profile dual-clean air cleaner
- Magnetron electronic ignition
- Oil cooler
Configuration details
These options depend on the complete engine specification. Confirm the configuration and equipment application with the shop.
- Cyclonic air cleaner
- Rewind start
