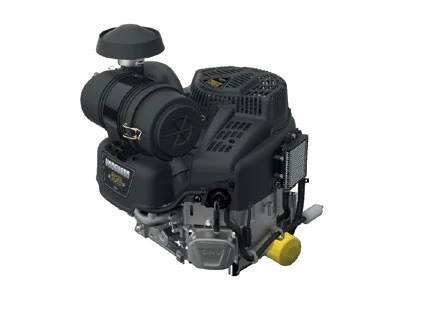

Vanguard 26.0 Gross HP (49R9)
Base-model engine information. Use the complete engine-label specification to confirm the configuration for your equipment.
- Shaft orientation
- Vertical
- Gross power
- 26.0 gross hp
- Displacement
- 810 cc
Base-model specifications
These specifications describe the base engine, not an exact ordering configuration or a guaranteed replacement fit.
- Shaft orientation
- Vertical
- Cylinder configuration
- V-twin
- Cooling
- Air-cooled
- Model number
- 49R9
- Gross power
- 26.0 gross hp
- Displacement
- 810 cc
- Cylinder construction
- Cast iron sleeve
- Bore
- 3.3 in
- Stroke
- 2.89 in
- Oil capacity
- 67 oz
- Catalog weight
- 92 lb
Engine features
- Full-pressure lubrication with oil filter
- Cyclonic air cleaner
Configuration details
These options depend on the complete engine specification. Confirm the configuration and equipment application with the shop.
- Oil Guard System
