Vanguard · Garland, Texas

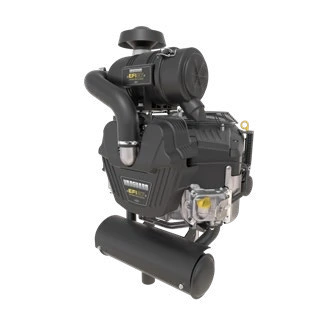

Vanguard 37.0 Gross HP EFI/ETC (61A7)
Base-model engine information. Use the complete engine-label specification to confirm the configuration for your equipment.
- Shaft orientation
- Vertical
- Gross power
- 37.0 gross hp
- Displacement
- 993 cc
Base-model specifications
These specifications describe the base engine, not an exact ordering configuration or a guaranteed replacement fit.
- Shaft orientation
- Vertical
- Cylinder configuration
- V-twin
- Cooling
- Air-cooled
- Model number
- 61A7
- Gross power
- 37.0 gross hp
- Displacement
- 993 cc
- Cylinder construction
- Cast iron sleeve
- Bore
- 3.37 in
- Stroke
- 3.41 in
- Oil capacity
- 82 oz
- Catalog weight
- 125 lb
- Dimensions (L × W × H)
- 22.09 x 20.24 x 24.65 in
Engine features
- Cyclonic air cleaner
- Full-pressure lubrication with oil filter
Configuration details
These options depend on the complete engine specification. Confirm the configuration and equipment application with the shop.
- Oil Guard System
- Alternators
- Oil-pressure switch
