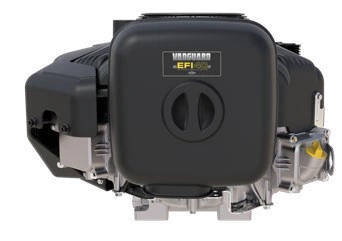

Vanguard 40.0 Gross HP EFI Marine (61G9)
Base-model engine information. Use the complete engine-label specification to confirm the configuration for your equipment.
- Shaft orientation
- Vertical
- Gross power
- 40.0 gross hp
- Displacement
- 993 cc
Base-model specifications
These specifications describe the base engine, not an exact ordering configuration or a guaranteed replacement fit.
- Shaft orientation
- Vertical
- Cylinder configuration
- V-twin
- Cooling
- Air-cooled
- Model number
- 61G9
- Gross power
- 40.0 gross hp
- Displacement
- 993 cc
- Cylinder construction
- Cast iron sleeve
- Bore
- 3.37 in
- Stroke
- 3.41 in
- Oil capacity
- 82 oz
- Catalog weight
- 125 lb
- Dimensions (L × W × H)
- 23.66 x 20.24 x 24.65 in
Engine features
- Low-profile air cleaner
- Full-pressure lubrication with oil filter
- Direct throttle control
- 20/50 A alternator
Configuration details
These options depend on the complete engine specification. Confirm the configuration and equipment application with the shop.
- Oil-pressure switch
